Parylene coating device

Parylene coating device(Vertical type) (LAP COATER)

Parylene coating device(Vertical type) (LAP COATER)

Parylene coating device(Vertical type) (LAP COATER)

Model OBT-PC300 (Vertical type)
Power Single phase 220V, 5KW
Chamber size 300ф X 300H(mm)
System size 900(W)X950(D)X1450(H)
Maximum raw material loading 200g
제어방식 Manual and automatic operation using touch panel and PLC
Option – Computer and PLC interlocking control
Advantages
  • Easy to install in a small place
  • Low device cost
  • Suitable as research equipment
  • Evaporator temperature program enables temperature control for each step & process control function according to the set vacuum level
Suitable for R&D

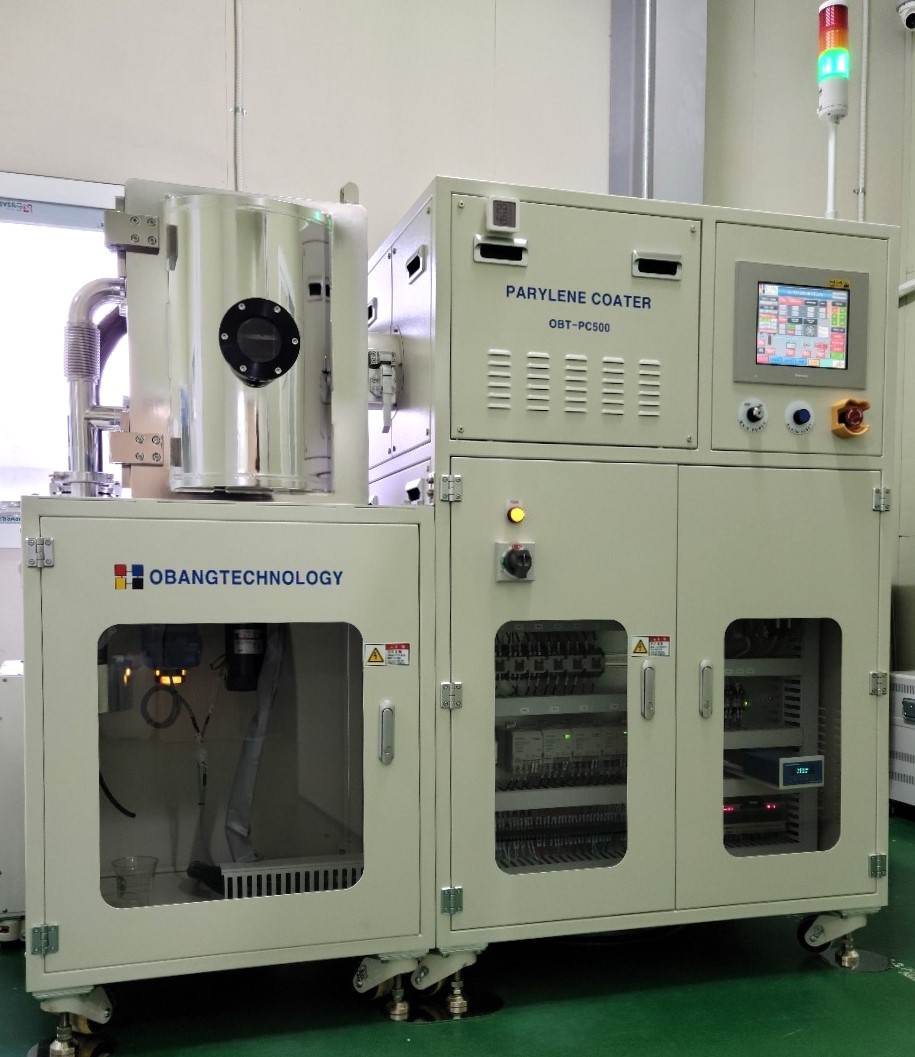

Parylene coating device (R&D and Mass production coating device)

Parylene coating device (R&D and Mass production coating device)

Parylene coating device (R&D and Mass production coating device)

Model OBT-PC500 (front door type)
Power Three phase 220V, 6KW
Chamber size 400ф X 500H(mm)
System size 1630(W)X650(D)X1660(H)
Maximum raw material loading 250g
Control method Manual and automatic operation using touch panel and PLC
Option – Computer and PLC interlocking control
Advantages
  • Convenient maintenance
  • Low cost as research and mass production device
  • Easy to insert and remove products with the front door opening and closing type
  • Small chamber size for easy production
  • Evaporator temperature program enables temperature control for each step & process control function according to the set vacuum level
Suitable for R&D and mass production

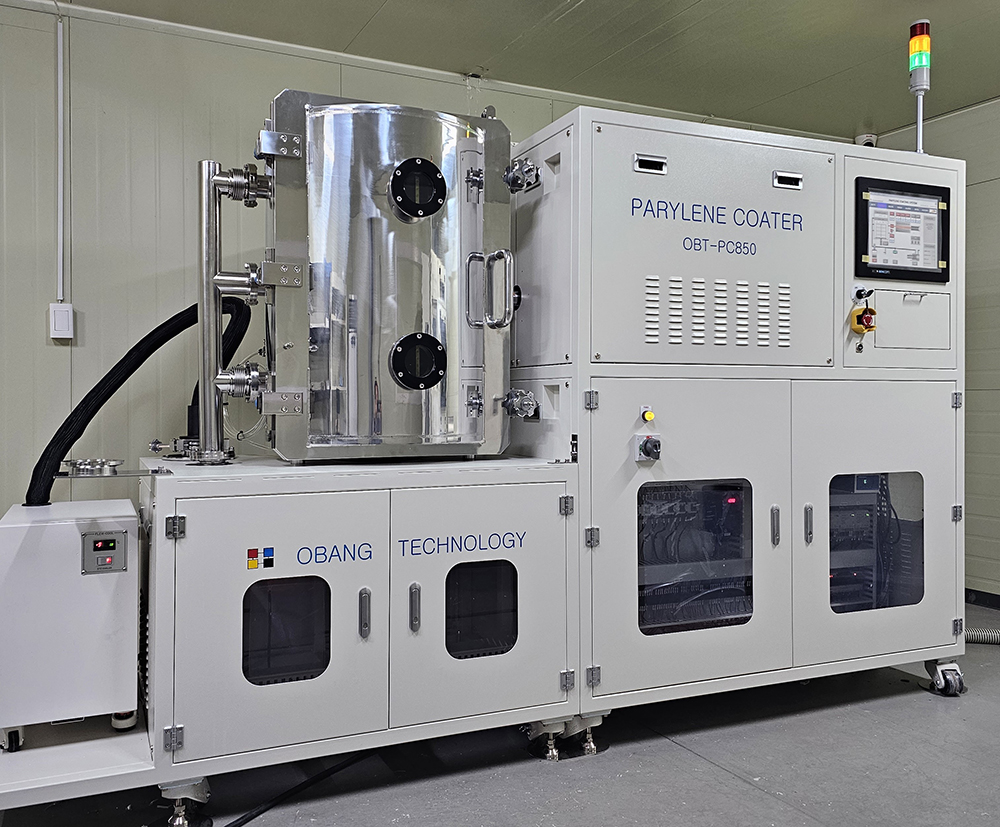

Parylene coating device (Mass production coating device-2)

Parylene coating device (Mass production coating device-2)

Parylene coating device (Mass production coating device-2)

Model OBT-PC850 (front door type)
Power Three phase 220V, 10KW
Chamber size 640ф X 850H(mm)
System size 2500(W)X800(D)X1890(H)
Maximum raw material loading 400g
Control method Manual and automatic operation using touch panel and PLC
Option – Computer and PLC interlocking control
Advantages
  • Convenient maintenance
  • Easy to insert and remove products with the front door opening and closing type
  • Easy as a facility for general mass production
  • Evaporator temperature program enables temperature control for each step & process control function according to the set vacuum level

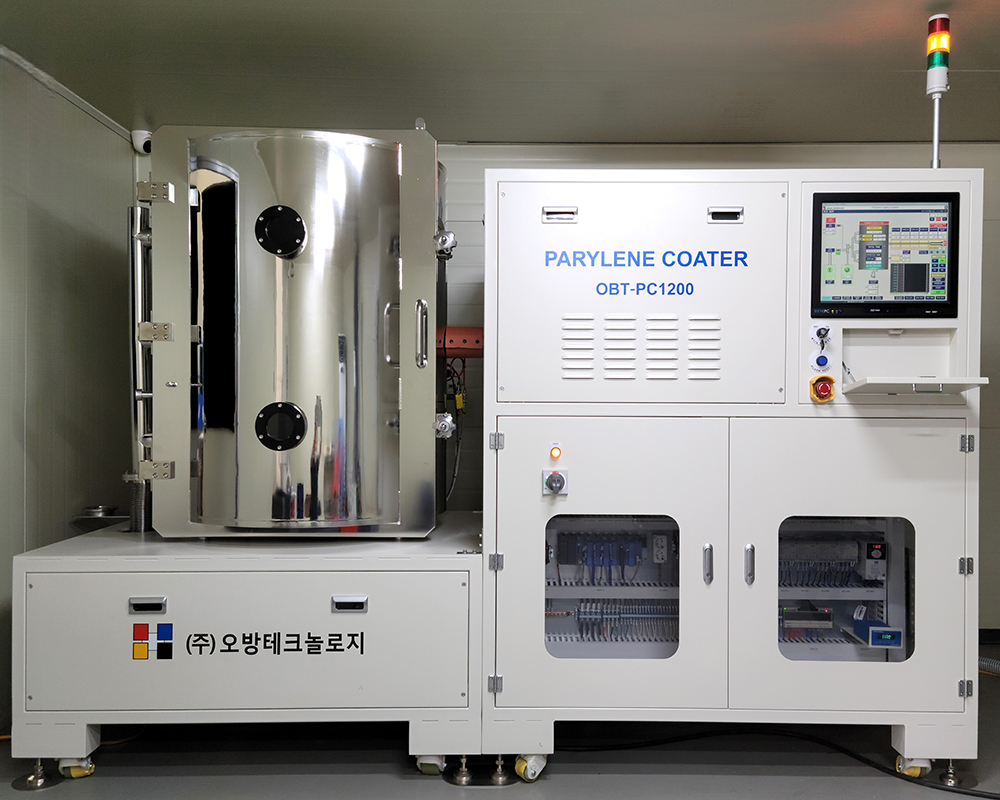

Parylene coating device (Mass production coating device-3)

Parylene coating device (Mass production coating device-3)

Parylene coating device (Mass production coating device-3)

Model OBT-PC1200 (front door type)
Power Three phase 220V, 15KW
Chamber size 930ф X 1200H(mm)
System size 2900(W)X1000(D)X1900(H)
Maximum raw material loading 1200g
Control method Manual and automatic operation using touch panel and PLC
Option – Computer and PLC interlocking control
Advantages
  • Convenient maintenance
  • Easy to insert and remove products with the front door opening and closing type
  • Easy as a facility for general mass production
  • Evaporator temperature program enables temperature control for each step & process control function according to the set vacuum level

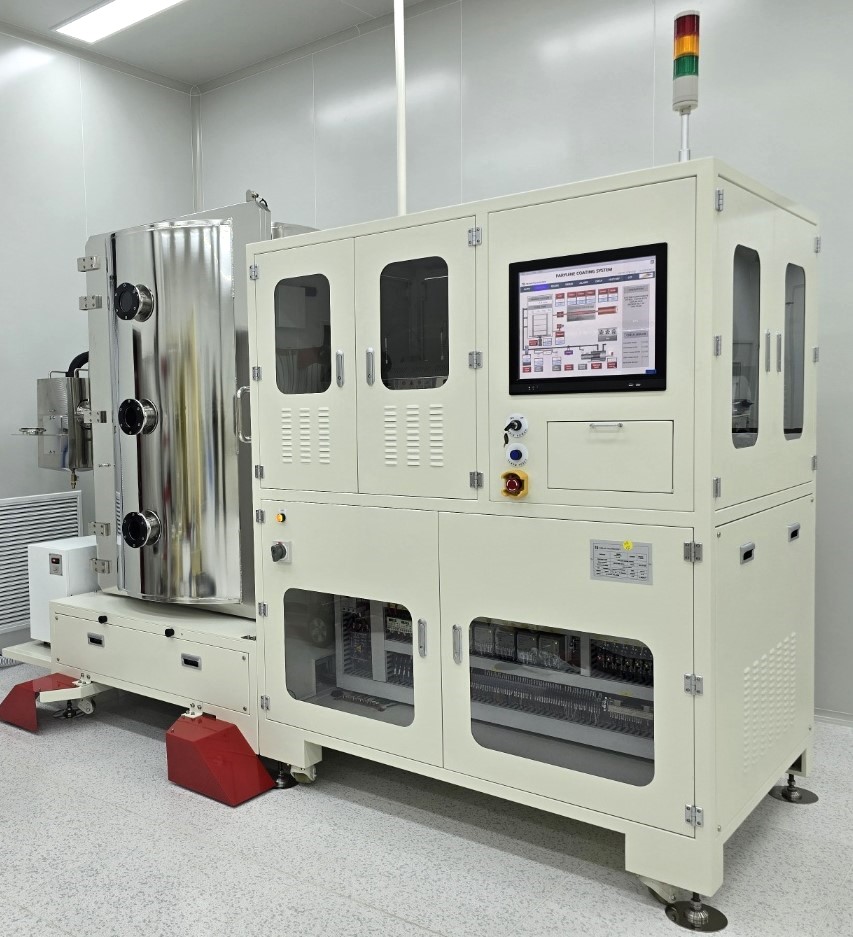

Parylene coating device (Mass production coating device-4)

Parylene coating device (Mass production coating device-4)

Parylene coating device (Mass production coating device-4)

Model OBT-PC1500H (front door type)
Power Three phase 220V, 15KW
Chamber size 1000ф X 1500H(mm)
System size 2900(W)X1100(D)X2000(H)
Maximum raw material loading 1200g
Control method Manual and automatic operation using touch panel and PLC
Option – Computer and PLC interlocking control
Advantages
  • Convenient maintenance
  • Easy to insert and remove products with the front door opening and closing type
  • Easy as a facility for general mass production
  • Evaporator temperature program enables temperature control for each step & process control function according to the set vacuum level
